Swimming pontoons

Introduction

From standard modules, you can create a perfectly sized swimming pontoons for a beach in an inland waterway, use it as a boat pontoon to attach a smaller boat, or build a floating sauna on the modules. For examples of options, see below.

When planning a swimming pontoon, it is worth reading these articles:

Swimming pontoons come in three standard widths: 2 m, 2.4 m and 3 m and three standard lengths: 4 m, 5 m and 6 m.

Anchoring takes place using concrete anchors, mooring chains, mooring piles or mooring diagonals. In the case of a single-module pontoon, only a ground support is sufficient and it is not necessary to install anchors. However, pontoons consisting of several modules always need to be anchored. We recommend leaving anchoring to us, as we have the necessary special equipment to carry out the work safely.

  • In our web application you can test all the ideas about the size and layout of the swimming pontoon. You can also see the cost of the project. The guide is here.
  • Are you an engineer or an architect? Models of all our products and sample port solutions can be downloaded from the ProdLib catalog. You can find the user manual on this page.

The strong load-bearing structure is made of pressure-impregnated softwood and the decking is profiled to avoid sliding. Also, the wood materials used are sorted by strength and finger-jointed, ensuring top-class quality and durability.

Metal parts are protected from environmental impacts with hot-dip galvanizing.

220 l hollow plastic floats:

  • are lightweight and easily transportable;
  • they can withstand freezing, hits from stones and UV rays because they are made using rotational molding technology;
  • they are small in size and have a low draft and are suitable for waterways with fluctuating water levels or on swampy soil. This feature allows you to use it in special projects, such as ramps of sailboat schools and rowing channels.

A range of accessories are available, including side decking, ladders, railings, fenders, mooring rings, lighting posts and a lifebuoy set. Noble wood decking and LED-lit bollards are available for those looking for an especially exclusive look. In this article you will get ideas about what accessories are definitely worth consideration.

Swimming pontoons maintenance

Although the swimming pontoon is practically maintenance-free, to guarantee longevity, we recommend that you:

  • wash the decking in the spring and autumn with a pressure washer or brush and treat it once a season with a wood preservative that offers UV protection;
  • regularly check the condition of fasteners and hinge connections;
  • remove the ladder from the pontoon in the autumn to avoid damage by ice.

You can find these and other suggestions in the article: “How to  properly  care for a swimming pontoon?”.

Need advice or more info?

Lauri Lepp
Lauri Lepp

Tel: +372 5362 6166

E-mail: lauri@topmarine.ee

Price of Swimming pontoon

The prices attached to the drawings apply to the sample packages of the swimming pontoons, which consist of the pontoon platform and the gangway. For the pontoon, you will need to purchase an additional abutment , the price of which will be determined by the type of abutment it is reasonable to use on the site. You can also purchase a variety of accessories , such as handrails, a bench, and lighting to make swimming more comfortable and safer. Prices do not include installation or transport costs. Delivery terms at the FCA plant in Keki 9, Näpi, Estonia. You can use the help of our professional installers for installation, but you can also set up the swimming pontoon yourself according to our instructions.

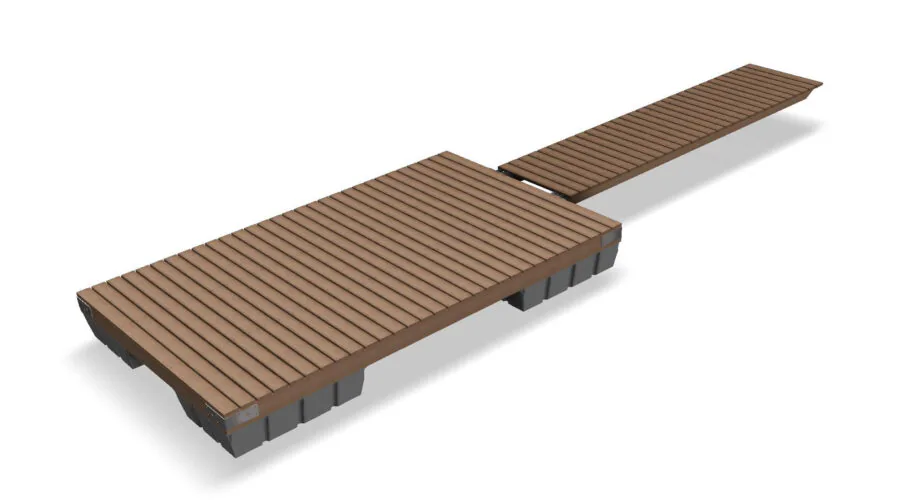

Swimming Pontoon 2,4 x 4 m2001€
Timber deck 2.4 x 4 m1 pcs 858€
Plastic Float 220 l4 pcs604€
Gangway 1,2 x 4 m1 pcs539€

Load capacity 670 kg, weight 210 kg, freeboard 0.35 m.

Swimming Pontoon 2,4 x 6 m2903€
Timber deck 2.4 x 6 m1 pcs 1156€
Plastic Float 220 l8 pcs1208€
Gangway 1,2 x 4 m1 pcs 539€

Load capacity 1422 kg, weight 338 kg, freeboard 0.37 m.

Swimming Pontoon 3 x 5 m2647€
Timber deck 3 x 5 m1 pcs 1202€
Plastic Float 220 l6 pcs 906€
Gangway 1,2 x 4 m1 pcs 539€

Load capacity 10020 kg, weight 320 kg, freeboard 0.35 m.

Swimming Pontoon 3 x 6 m3137€
Timber deck 3 x 6 m1 pcs 1390€
Plastic Float 220 l8 pcs 1208€
Gangway 1,2 x 4 m1 pcs 539€

Load capacity 1367 kg, weight 393 kg, freeboard 0.36 m.
